Dashboard

Janus 3 includes Cloudline, a responsive control plane at /dashboard/ui. It is a static SvelteKit 2, Svelte 5, and TypeScript application with modular screens, responsive navigation, light/dark/system themes, and a searchable command palette.

FastAPI serves the committed production bundle from src/janus/dashboard/static/app/. Node.js and npm are development/build-time dependencies only; a running Janus server does not need them. All Cloudline and dashboard assets are served locally, so the interface has no runtime CDN dependency.

Open it in your browser:

http://localhost:20128/dashboard/ui

Cloudline is the only dashboard UI. The root URL /, /dashboard, and former page URLs are compatibility redirects to their matching Cloudline routes. Dashboard management APIs remain under /dashboard/api.

Authentication

Every dashboard client must authenticate with a valid Janus API key, including clients on 127.0.0.1 and localhost. There is no loopback bypass and no username/password login. Unauthenticated browser requests are redirected to /dashboard/login, which sets an httponly janus_dashboard_key cookie (30-day max-age) scoped to the /dashboard path and returns to the originally requested page. The cookie carries the Secure attribute whenever the request arrives over HTTPS (behind a TLS-terminating reverse proxy, forward X-Forwarded-Proto); plain-HTTP local development gets a non-Secure cookie. The cookie is never accepted as a credential on /v1/* API endpoints. Repeated failed login attempts from one IP are temporarily locked out, and mutating dashboard requests whose Origin header differs from the request host are rejected. API-style requests without a valid key or cookie receive 401.

DB-managed keys must be active and have Allow dashboard login (can_login=true). Static API keys configured in YAML are also accepted. Manage DB-key access from API Keys; the Require API key setting controls API endpoint authentication and never makes the dashboard anonymous.

Accepted auth methods (same as the API):

• Authorization: Bearer <key>
• x-goog-api-key: <key>
• ?key=<key>

Credential migration

Legacy dashboard username/password settings are removed during database initialization. Use an authorized API key to sign in after upgrading.

Navigation

The sidebar has six sections. Selecting a section opens its first tab, and a tab strip under the page header switches between the section's pages. Every tab is a real link with its own URL under /dashboard/ui, so back/forward navigation, deep links, and bookmarks work as before. A section stays highlighted in the sidebar while any of its tabs is open. On narrow viewports the sidebar becomes a drawer, and the command palette (Ctrl+K, Cmd+K, or /) opens any tab directly.

Section	Tab	URL
Home	Overview	/dashboard/ui
Connect	Keys and logins	/dashboard/ui/connect
	Restore backup	/dashboard/ui/connect/restore
Inventory	Overview	/dashboard/ui/inventory
	Keys	/dashboard/ui/inventory/keys
Routing	Providers	/dashboard/ui/providers
	Models	/dashboard/ui/models
	Can't reach	/dashboard/ui/models/unreachable
	Combos	/dashboard/ui/combos
	Health	/dashboard/ui/routing
	Token savers	/dashboard/ui/savers
Usage	Live	/dashboard/ui/usage
	Analytics	/dashboard/ui/analytics
	Leaderboard	/dashboard/ui/leaderboard
	Request logs	/dashboard/ui/request-logs
Settings	General	/dashboard/ui/settings
	API keys	/dashboard/ui/keys
	Budgets	/dashboard/ui/budgets
	Pricing	/dashboard/ui/pricing
	Tools	/dashboard/ui/tools

The former inventory URLs /dashboard/ui/inventory/add and /dashboard/ui/inventory/import redirect to Connect → Keys and logins and Connect → Restore backup. The theme control cycles through system, light, and dark modes and stores the preference in the browser.

---

Home

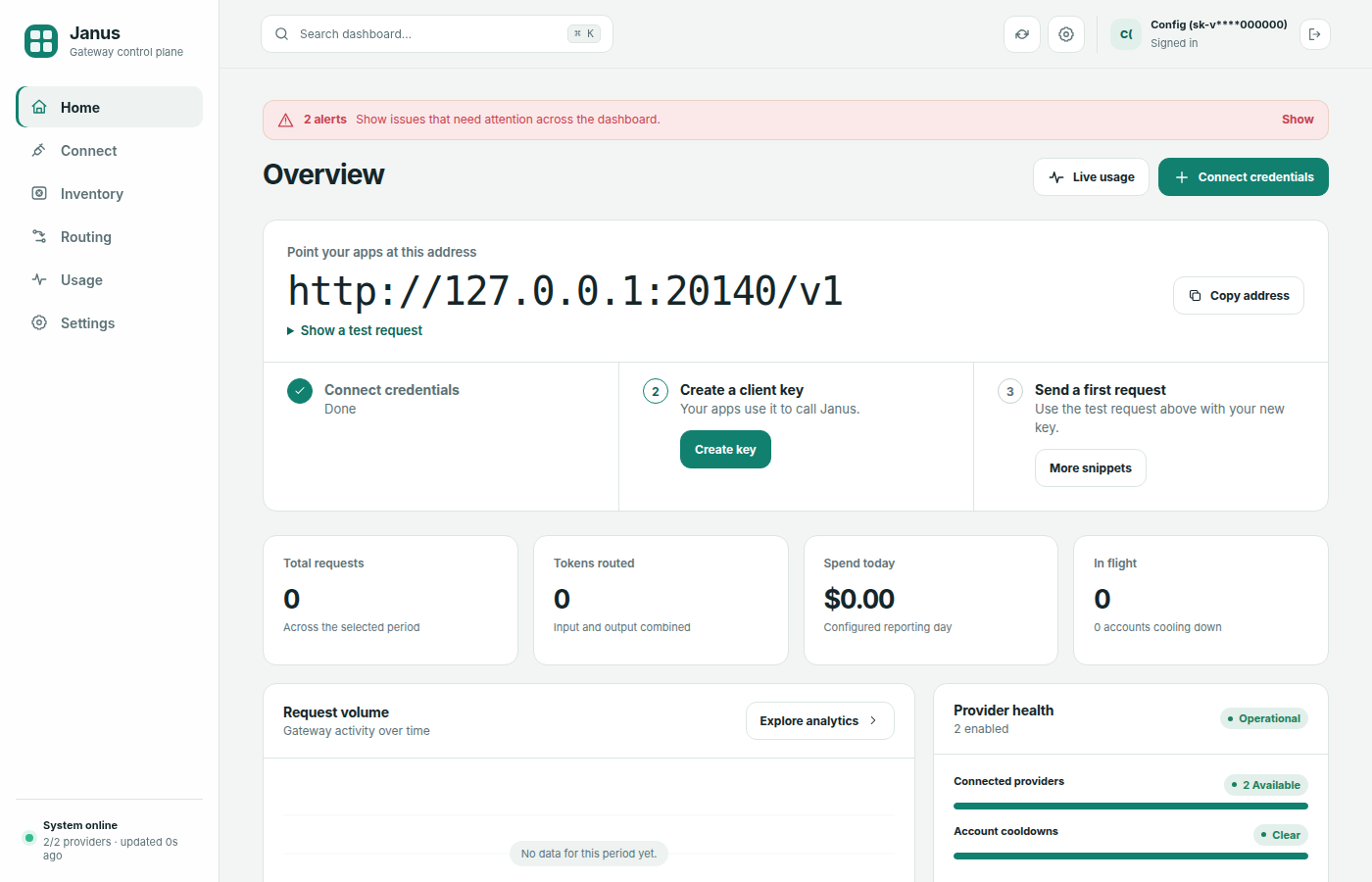

Overview — /dashboard/ui

The landing page.

• First-run checklist. While setup is incomplete, a hero card lists three steps: Connect credentials, Create a client key, and Send a first request. Each step links to the screen that does it and is checked off once Janus sees a provider, an active client key, and a recorded request.
• Your endpoint. The API base URL for this server (for example http://localhost:20128/v1) and a copyable curl snippet for a first request. Settings → Tools has per-client setup.
• Below that: total requests, input/output tokens, provider and combo counts, today's total cost, and the global budget status bar.

Connect

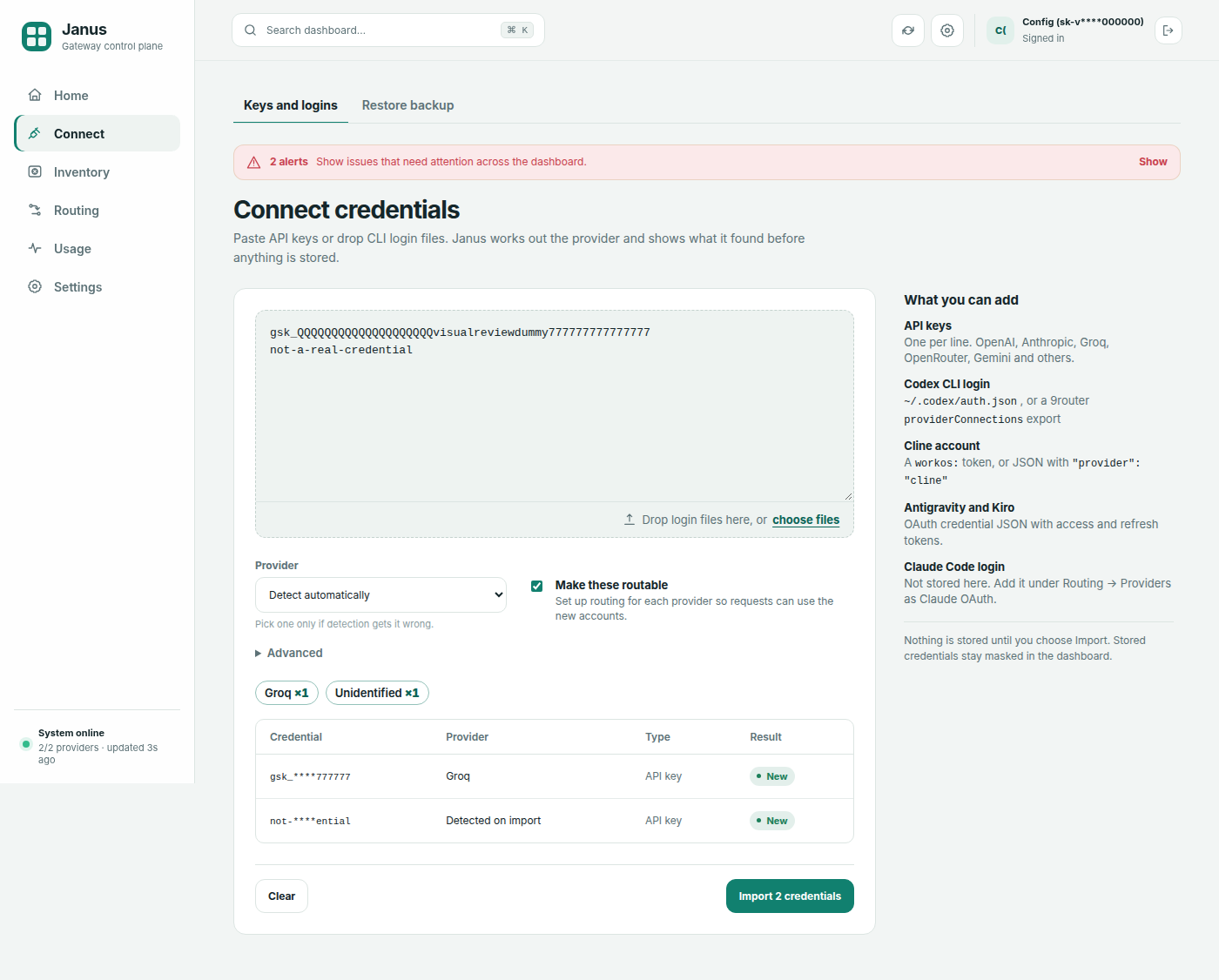

Keys and logins — /dashboard/ui/connect

One screen for adding upstream credentials:

1. Paste or drop. Paste API keys (one per line) or a credential JSON export into the text area, or drop files onto the drop zone. Dropped files are read in the browser; nothing is uploaded until you preview.
2. Choose options. The provider selector defaults to Auto (detect the provider for each entry). Auto recognizes Codex CLI auth.json, 9router providerConnections exports, Cline, Antigravity, Kiro, and Claude Code (.credentials.json) credential JSON (see Supported credential formats); choose the provider yourself for a bare OAuth access token. Claude Code logins are accepted here as Claude Code (OAuth) inventory credentials. Advanced holds an optional custom base URL. Make these routable is on by default; it creates the matching routing provider when one is missing, so imported credentials join fallback rotation once they validate.
3. Preview. Janus calls POST /dashboard/api/inventory/preview and shows summary chips per provider (for example "Codex ×2, Groq ×1, 1 duplicate, 1 unsupported"), then a table of masked entries. Each entry is new, exists (already in the inventory), or rejected with a reason. The preview never writes to the database.
4. Import. Import is enabled once at least one entry is new. It submits through the regular inventory submit endpoint, shows per-entry results, and refreshes while validation is still pending. Next-step buttons lead to Inventory, Settings → API keys, and a test request.

Credential values are masked throughout and rendered as text only. See Key Inventory — Supported credential formats for what can be pasted.

Restore backup — /dashboard/ui/connect/restore

Import a Dashboard_For_Apis JSON export (from another Janus node or a compatible key manager) into the inventory.

Inventory

Overview — /dashboard/ui/inventory

Credit summary, provider cards, best keys, recent activity, and encryption status.

Keys — /dashboard/ui/inventory/keys

Filterable, paginated key list with per-key recheck, reveal, history, and delete. See Key Inventory for full documentation.

Routing

Providers — /dashboard/ui/providers

Full CRUD for gateway providers:

• Add / Edit — set prefix, API type, base URL, API key, models, allowlists, and subscription quota
• Test Connection — 1-token probe with status and latency
• Enable / Disable — toggle without deleting
• Delete — remove provider (closes its HTTP client)

The provider workspace separates a logical provider prefix from its connections and inventory accounts. Multiple enabled connections can share one prefix; Janus pools their upstream accounts for fallback, cooldown, quota, and rate-limit-aware routing. Custom models belong to that logical prefix, so deleting or disabling one connection does not silently remove models that another same-prefix connection can serve.

Provider setup includes the catalog gallery and live Fetch Models helper.

When editing, leave the API key field blank to preserve the existing key.

Changes hot-reload — no server restart needed.

Models — /dashboard/ui/models

Choose which models appear in the shared Janus catalog and GET /v1/models, and add custom models to a provider prefix. Hidden models remain callable by exact ID.

Models you can't reach — /dashboard/ui/models/unreachable

Lists known models (catalog defaults, discovered inventory models, and models on provider rows) that Janus cannot currently route, grouped by provider with the reason (no provider, provider disabled, no active credential, or model not enabled on any account). Each group has a button that opens Connect with that provider preselected, or the Providers page when Connect cannot onboard it. Models whose every account is cooling down are listed separately as Reachable soon — they are never counted as unreachable.

Combos — /dashboard/ui/combos

Full CRUD for fallback chains:

• Create / Edit — name and ordered model list
• Delete — remove combo

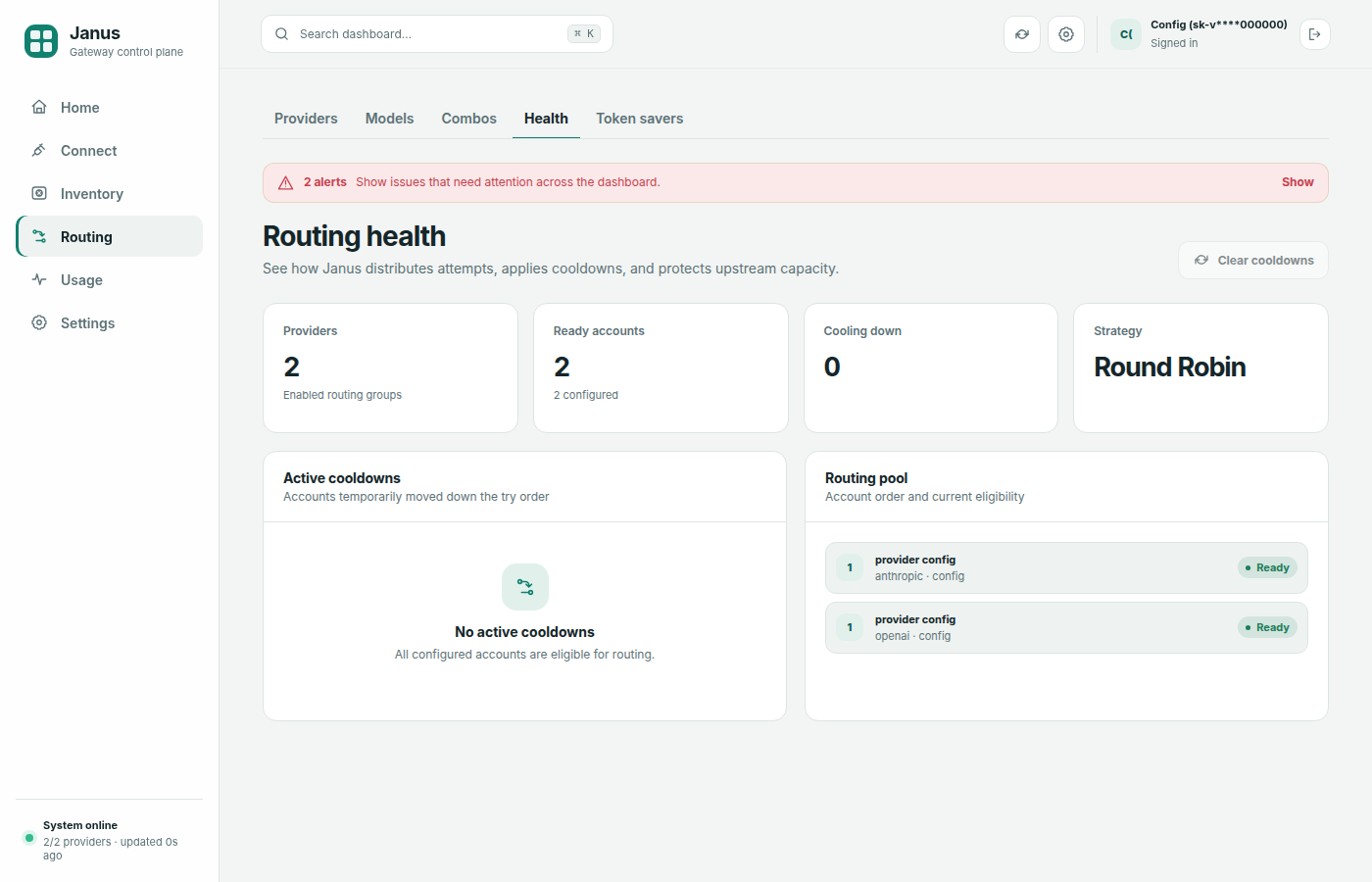

Health — /dashboard/ui/routing

The Health tab also carries the Auto routing panel: pick the strategy used when a client sends model: "auto" (balanced, cheapest, fastest, or quality), see the ranked model chain auto would pick right now with the full scoring breakdown (cost, error rate, TPS, TTFT, sample counts), and pin quality overrides (0–1) that beat measured signals — useful when your evals disagree with the recorded data. API clients can fetch the same trace from GET /v1/quality/auto-preview?strategy=. Request Logs show the model the request resolved to next to the requested one.

• Enabled provider and account readiness at a glance
• Current account strategy and try order
• Active cooldowns with remaining duration
• Quota-deprioritized accounts and a guarded clear-cooldowns action

Token savers — /dashboard/ui/savers

Toggle savers at runtime:

• RTK — on/off (default on)
• Caveman — on/off
• Ponytail — on/off with level selector (lite / full / ultra)
• Headroom — on/off with a configurable local proxy URL

Settings are stored in the DB and take effect immediately.

Usage

Live — /dashboard/ui/usage

• Live in-flight request count and recent gateway events
• Historical request volume, token use, and cost
• Automatic live-stream reconnection after transient disconnects

Analytics — /dashboard/ui/analytics

• Spend trajectory for 7, 30, 90, or 365 days
• Breakdown by model, provider, account, or client key
• Request, token, cost, and success-rate summaries
• Savings vs baseline. What the window's priced traffic would have cost on a baseline model (default gpt-4o, changeable via the selector or the analytics_savings_baseline setting), how much routing actually spent, and a per-model table of the difference. Requests on subscription providers and unpriced models are excluded and reported separately — they never count as savings. API clients can read the same numbers from GET /v1/analytics/savings?baseline=&days=. Home shows the same comparison for the configured reporting day as a Saved today tile.

Leaderboard — /dashboard/ui/leaderboard

• Rank clients by tokens, cost, or requests
• Compare request volume, success rate, token use, and cost

Request logs — /dashboard/ui/request-logs

Debug view of captured API requests (off by default — enable Request Logging under Settings → General, or set server_request_logging=true):

• Paginated table of recent requests: time, model, provider, status, and latency
• Per-request JSON detail (full request/response bodies, truncated at 64 KB)
• Successful completions (stream + non-stream), exhausted fallbacks (503), and non-fallback upstream errors (e.g. 400) are recorded when logging is on
• Export all logs as JSON; Clear button wipes the table
• Retention is configurable via server_request_log_retention (default 500, clamped between 50 and 5000) on the Settings page — oldest rows beyond the limit are pruned automatically

The table also has a User column. It shows the DB-issued key name, the configured static-key label (client_key_label), or — when an API request was allowed without a client key.

If the page is empty, logging is almost always still disabled — check the banner and the Settings toggle.

Sensitive content

Captured bodies contain prompts and completions. Leave request logging off unless actively debugging.

Settings

General — /dashboard/ui/settings

• Require API key — runtime toggle (stored in DB, overrides YAML default)
• Enable account cooldowns — when on (default), accounts that hit 429/5xx/auth/network errors are skipped until their cooldown expires. Turn off to override and keep retrying those accounts immediately (server_cooldowns_enabled). Also available via janus settings set server_cooldowns_enabled false
• Sticky client routing and account strategy
• Reporting timezone and request-log retention
• Request Logging — capture full request/response bodies for debugging (off by default), plus the log retention limit
• Prompt cache — serve cached responses for deterministic requests at zero cost (off by default; see below)
• Export secrets — download current DB state as YAML after an explicit plaintext-credential warning

Settings also exposes advanced combo routing controls (combo_strategy, sticky limit, and Fusion tuning), server information, and Reset to Defaults. See Combos & Fallback for the routing fields. Values are validated server-side, and reset wipes the relevant DB state before re-seeding from config.yaml.

Prompt cache

When Prompt cache is enabled (server_prompt_cache_enabled), Janus serves an exact-match cached response — before any upstream call — for deterministic requests:

• explicit temperature=0 without a narrowed top_p (top_p unset or 1.0), or
• a pinned seed,

and only for non-streaming requests. The cache key covers the full post-saver canonical request plus every output-shaping parameter (max_tokens, stop, n, penalties, logit_bias, tool_choice, thinking intent, …) and is scoped per client API key, so completions never leak across keys. Token-saver normalization (RTK, Caveman, …) happens before the key is computed, so savers increase the hit rate.

A cache hit returns the original response with an x-janus-cache: hit header, records zero-cost usage, and appears in Request Logs with the provider shown as prompt-cache. Entries are bounded by server_prompt_cache_ttl_s (default 3600) and server_prompt_cache_max_entries (default 128, LRU eviction). Responses are cached in memory only and are not persisted across restarts.

Settings does not contain a dashboard username or password. Dashboard identity and access are API-key based, and Settings → API keys is the place to grant or revoke Allow dashboard login. Any legacy username/password settings are purged at database initialization.

On Routing → Health, use Clear all cooldowns to wipe active in-memory and SQLite cooldown timers without changing the enable toggle.

API keys — /dashboard/ui/keys

• Key list — ID, prefix, name, login permission, model allowlist, status (active/revoked)
• Create — modal with Allow dashboard login, allowed models (exact or prefix/*), and daily/absolute budgets; full sk-janus-... key shown once
• Edit — update name, dashboard access, models, or either budget; blank budget fields remove their limits
• Revoke — deactivate key

Budgets — /dashboard/ui/budgets

• Budget list — scope (global or key name), daily limit, spent today, absolute lifetime limit, spent total, warning threshold, and status (ok / warning / exceeded)
• Create/edit — select a scope, enter a daily limit, an absolute limit for a specific key, or both, and choose a warning percentage. Absolute limits never reset and include past usage.
• Delete — remove both limits without deleting the key or its spending history

Pricing — /dashboard/ui/pricing

• View all ~28 builtin model prices
• Add / Edit / Delete custom pricing overrides
• Overrides merge with builtins at request recording time

Tools — /dashboard/ui/tools

Copy-paste environment variable cards for:

• Claude Code
• Codex
• Cursor
• Cline

Each card shows the exact export commands for your server URL and auth settings.

---

Management API

Cloudline reads authenticated, non-cacheable JSON state from the v2 API and uses the dashboard management API for mutations. Responses are structured data, not server-rendered or HTMX fragments. The v2 state responses include section, alerts, data, and meta; credentials and other sensitive fields are removed before serialization.

Method	Path	Action
GET	/dashboard/api/v2/state/{section}	Read state for a Cloudline screen
POST	/dashboard/api/v2/keys	Create an API key and return its plaintext value once

Supported state sections are overview, usage, analytics, leaderboard, request-logs, inventory, inventory-keys, providers, combos, routing, savers, budgets, keys, tools, pricing, and settings. Every request requires dashboard access; state and one-time credential responses use Cache-Control: private, no-store.

The management endpoints below return structured responses. For scripting, prefer the CLI.

API Keys

Method	Path	Action
POST	/dashboard/api/v2/keys	Create an API key and return its plaintext value once
POST	/dashboard/api/keys/{id}	Update key scopes and optional daily/absolute budgets
DELETE	/dashboard/api/keys/{id}	Revoke an API key

Budgets

Method	Path	Action
POST	/dashboard/api/budgets	Create or update a budget
DELETE	/dashboard/api/budgets/{id}	Delete a budget

Budget forms accept key_select (a key ID or global), daily_limit, absolute_limit, and warn_pct. Absolute limits require a specific key and count its all-time recorded spending; they never reset. Either or both limits may be set. An omitted limit preserves its existing value; a submitted blank limit removes it. At least one limit must remain, or delete the budget instead.

Key create/edit forms use daily_budget and absolute_budget. On key edit, budget_fields=1 marks both budget fields as intentional: blanks clear their limits. Without that marker, omitted or blank values leave existing budgets unchanged. See Budgets for setup examples and enforcement details.

Providers

Method	Path	Action
POST	/dashboard/api/providers	Create provider
PUT	/dashboard/api/providers/{id}	Update provider
DELETE	/dashboard/api/providers/{id}	Delete provider
POST	/dashboard/api/providers/fetch-models	Fetch models from upstream
POST	/dashboard/api/providers/{id}/test	Test connection

Combos

Method	Path	Action
POST	/dashboard/api/combos	Create combo
PUT	/dashboard/api/combos/{id}	Update combo
DELETE	/dashboard/api/combos/{id}	Delete combo

Settings & config

Method	Path	Action
POST	/dashboard/api/settings	Update runtime settings (savers, require_api_key, request logging)
GET	/dashboard/api/export	Export DB config as a YAML download (provider API keys omitted unless ?include_secrets=true)
POST	/dashboard/api/reset	Reset DB and re-seed from YAML
GET	/dashboard/api/request-logs/export	Export captured request logs as JSON
GET	/dashboard/api/request-logs/{id}	Full detail for one captured request
DELETE	/dashboard/api/request-logs	Clear all captured request logs

Pricing

Method	Path	Action
POST	/dashboard/api/pricing	Create or update pricing override
DELETE	/dashboard/api/pricing/{model}	Delete pricing override

Inventory

Method	Path	Action
POST	/dashboard/api/inventory/preview	Classify pasted keys or credential JSON without storing them (masked, no database writes)
POST	/dashboard/api/inventory/submit	Add keys to the inventory (used by Connect with provision_routing=true)

See Key Inventory — Preview API for the preview response, and Key Inventory — Push API for POST /dashboard/api/inventory/push.

Former page routes under /dashboard are compatibility redirects to matching screen names under /dashboard/ui; API routes remain under /dashboard/api.
